Works info

Construction of the elevated structure and Des Sources station

Construction activities
Beginning summer 2019 From 6:30 a.m. to 7 p.m.*, 7 days a week, depending on work progress
Montréal (Downtown)

Nature of the work

The foundations of the elevated structure, including the caissons, columns and pierheads, have now been completed in certain sectors, so construction of the deck of the REM’s elevated structure can now begin using launching gantries.

Prefabricated segments will be assembled one after the other to form the deck on which the REM’s rail cars will run.
Watch the video.

Work schedule*

  • Summer 2019 to spring 2020: Construction of the elevated structure (pile driving)
    Fall 2019 to winter 2021 : Construction of the elevated structure (columns)
    Fall 2020 to fall 2021: Construction of the elevated structure (installation of segmented beams)
    Spring 2021: Beginning of construction of the station
    Summer 2021 to summer 2022: Installation of rails

*The current sequence is subject to change without notice.

Work zone around the Des Sources station. Between Des Sources and Saint-Jean boulevards

Impacts and mitigation measures

Road traffic is permitted beneath the equipment thanks to engineer certification that the prefabricated segments are securely anchored. Nonetheless, full and partial closures will be implemented when the prefabricated segments are delivered, raised and assembled.

Just as for any construction site, the work will generate noise, vibrations, dust, heavy truck traffic and traffic disruptions. Mitigation measures will be implemented to prevent or minimize the impact on surrounding residents and ensure everyone’s safety.


Elevated structure

The REM’s elevated structure on the West Island allows for construction of a linear route, limiting the footprint and the impact of the construction work.

Column height varies depending on a column’s location on the route. There will be a minimum clearance of 5.3 metres (Ministère des Transports standard) below the deck to ensure passage of vehicles.

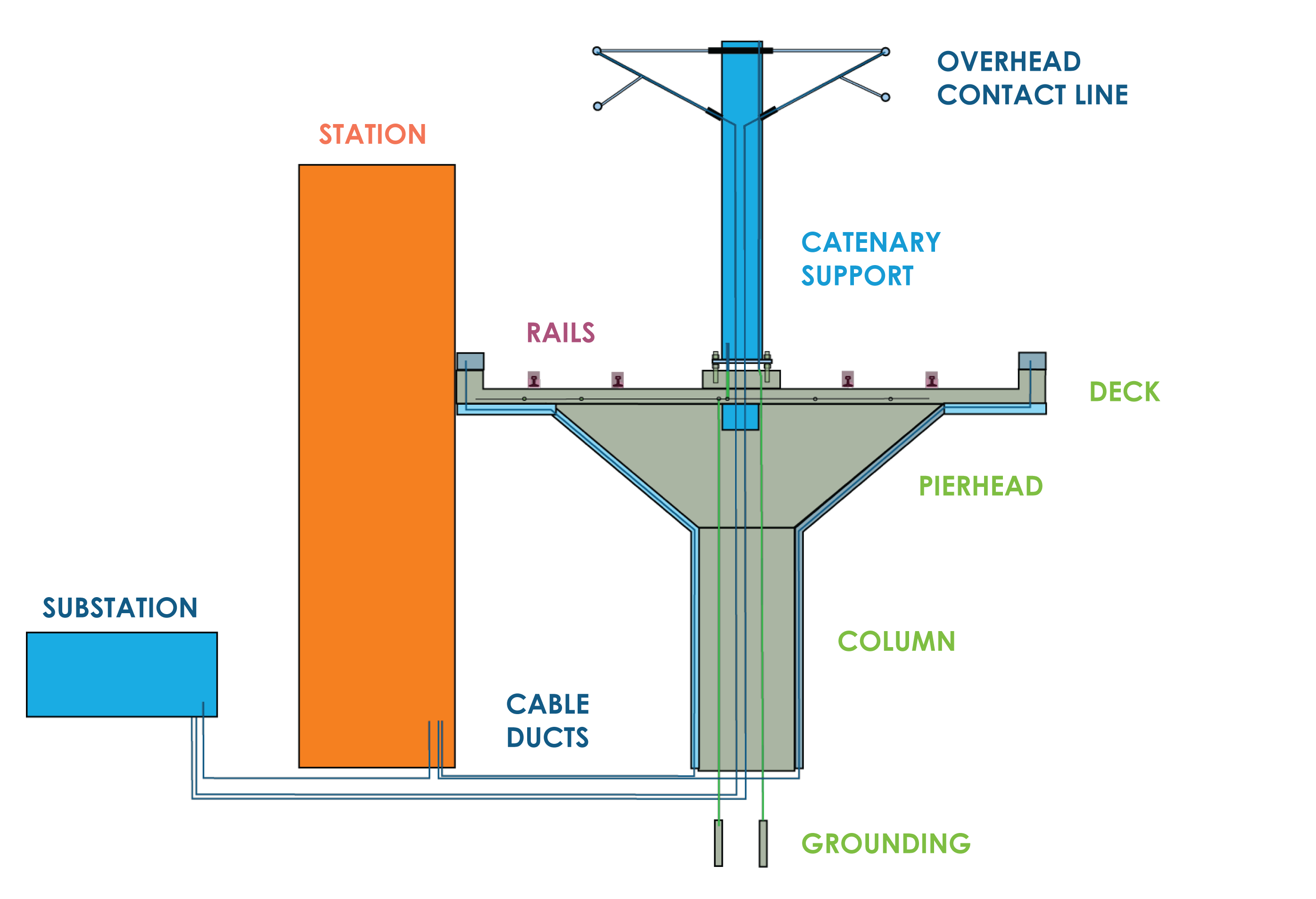

The following diagram shows the profile of the elevated structure (for information purposes only):
